Sentinel Suite™ Family of Advanced Diagnostics and Prognostics Tools



Sentinel Suite: A PHM Solutions Family

For over a decade, Ridgetop Group has been developing effective prognostics and health management (PHM) solutions for complex, critical systems  that  can  dramatically  reduce  lifecycle costs. Prognostics, or predictive diagnostics, is the ability to detect the onset of failure before it occurs. Ridgetop Group has pioneered the development of advanced methods of detecting physics-of-failure-based nasaindications of impending failure. Ridgetop's approach deals with the extraction of unique 'signatures' that are correlated to the impending failure conditions.

The Sentinel Suite Solution

Sentinel Suite is a family of advanced prognostic and health management solutions for electronic systems. These solutions offer end-to-end monitoring of systems and comprise sensors, anomaly detection, prognostic reasoners, and graphical visualization tools.

Sentinel Suite - Prognostic framework block diagram

Sentinel Suite – Prognostic framework block diagram

Sentinel Suite's modular, adaptable, and accurate prognostic solutions enable condition-based maintenance (CBM), thereby reducing unscheduled downtime and unexpected maintenance costs.

Development Kits

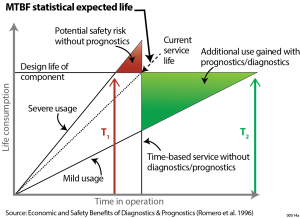

00514a Economic & Safety Benefits of Diagnostics and Prognostics-01Development kits are available for each member of the  Sentinel  Suite  family to make adoption quick and easy. Contact Ridgetop for more information.

Prognostics indicate actual state of health and remaining useful life, eliminating the need to remove the system for maintenance based predetermined mean time between failures (MTBF).

Prognostic and Anomaly Detection Algorithms:

Ridgetop’s software reasoner technology and algorithms enabled advanced diagnostics and prognostics of electronic and electromechanical systems. These reasoners analyze data from any kind of sensor and provide insight as to the health of systems by detecting, extracting, and analyzing degradation and fault signatures. A system, although operational, may not be performing optimally, indicating a risk of unexpected failure.

Multivariate Analysis (MVA) for advanced multiple sensor data distillation

Repeated simultaneous sensor measurements can be considered as a statistical time series and therefore the most appropriate methodology of their analysis should be statistics-based. The MVA methodology is based on the type of available data from the system. Usually multiple measurements are available, and they are mathematically processed using multivariate algorithms into a single indicator characterizing the state of health (SoH) of the object under consideration. An example flow is shown below.

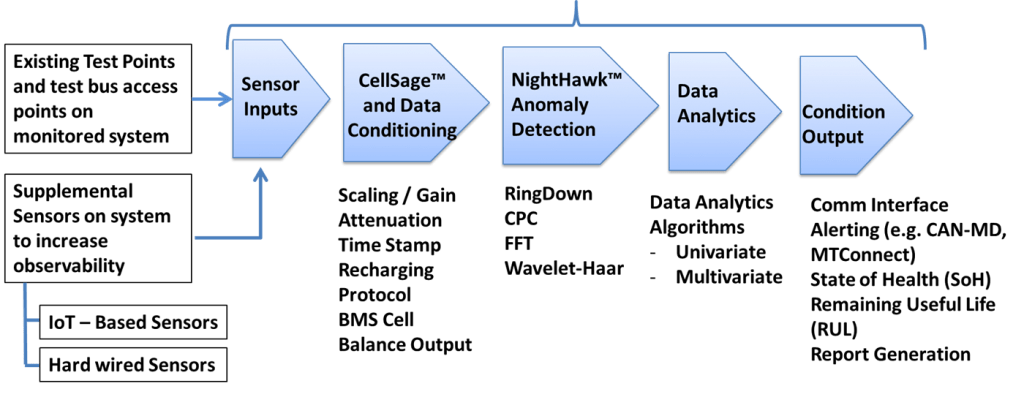

IVHM/Battery Process Flow

Technical Approach for MVA

To arrive at a way to distill multiple sensor, time-stamped data samples from the system, the efficacy of several types of algorithms should be analyzed.  The Minkowski distances are the most popular measures. Typically MVA is based on a collection of healthy measurements (creating the reference base) which are compared to the actual real-time samples provided by the sensors at any time.

The memory matrix is a collection of healthy historical data covering the entire healthy range of the system including various instances of a healthy system as intrinsic manufacturing boundaries and variability. Each column is a vector of simultaneous measurements. The matrix can be broken up to two parts: Training data and validation data. Some methods do not use validation data, in that case, the entire memory matrix is the training data. The central idea is to construct a single characteristic metric of the SoH of the system by condensing the multiple sensor measurements. For more information, please contact us directly.

Ridgetop’s Sentinel Suite Family of Solutions

The array of reasoners below, developed by Ridgetop, are key components to the Sentinel Suite family. They include:

ARULE: The Adaptive Remaining Useful Life Estimator

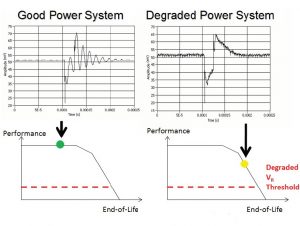

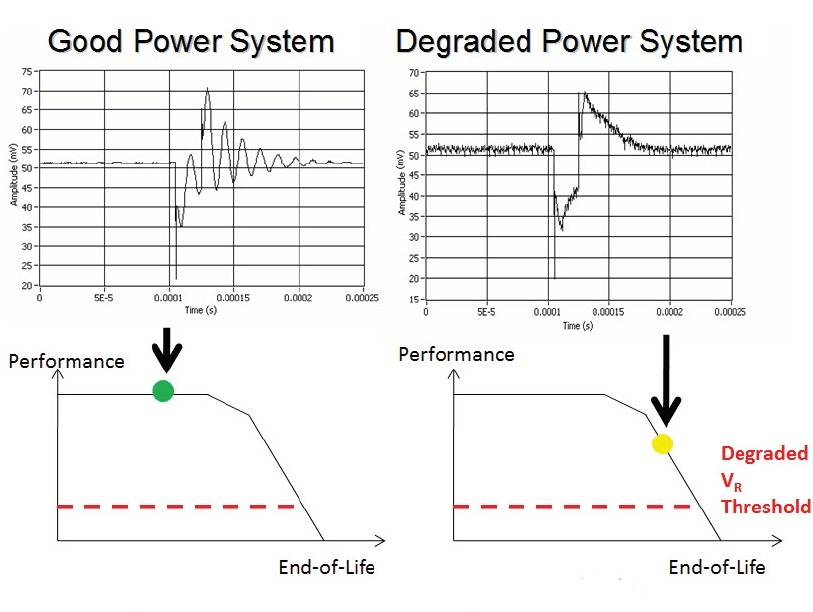

ARULE: The Adaptive Remaining Useful Life Estimatorsentinel-suite_arule_pic Analyzes incoming sensor data and provides systems’ state of health (SoH) and remaining useful life (RUL) and can be used to detect degraded conditions to support proactive maintenance.

  • Detects anomalies or changes in monitored equipment performance
  • Reports abnormal changes
  • Operates on data from power, actuator and vibrational/rotational applications

Sentinel Power

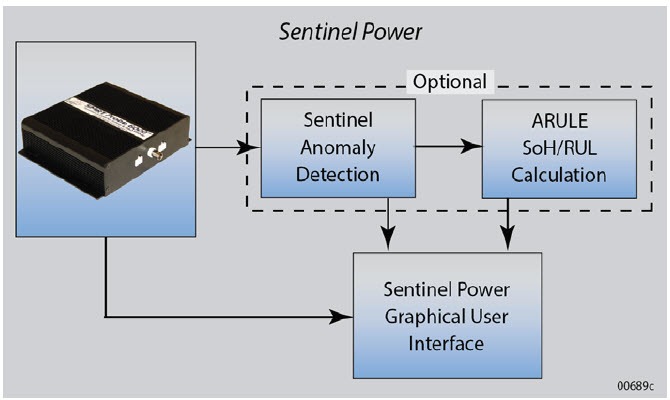

Sentinel Powersentinel-suite_sentinel-power is a product line that includes signature monitoring sensors, prognostic reasoners and a visualization tool. The Sentinel Power product line offers the SMRT Probe 4000, providing advanced diagnostics and prognostics for power systems and based on RingDown technology.

RingDown

Ringdown is a patented, non-invasive, stand-alone early warning approach to detecting the onset of component aging in most switched-mode power supplies. It provides an important capability that supports any electronic health management strategy for high-reliability systems.

Sentinel Motion

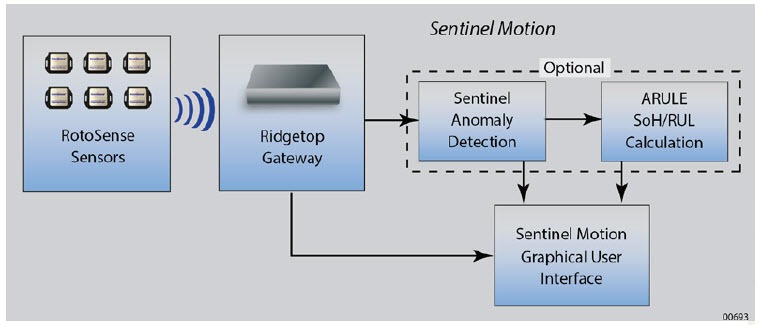

Sentinel Motionsentinel-suite_sentinel-motion is the solution that focuses on monitoring and analyzing vibrations in rotational equipment. This product line consists of RotoSense and RailSafe, along with development kits for applications in helicopters, such as RidgeGator. Sentinel Motion also provides answers to application challenges in wind turbines and other rotational systems.

Applications that Sentinel Motion products directly can be applied to include:

  • Sensing tool wear, chatter or spindle balance in CNC machines
  • Real-time down-hole vibration monitoring in oil and gas exploration
  • Vibrational signatures in rotating shafts
  • Detection of train wheel track conditions and other abnormalities
  • Gearbox monitoring
  • Turbine monitoring

Sentinel Interconnect

Diagram representation of SJ BIST implementation in a host circuit

Diagram representation of SJ BIST implementation in a host circuit

Sentinel Interconnect detects faults in solder joints, sockets, plugs, wires, cables and more. Comprising of two sensors, SJ BIST and TSV BIST, both of these products use an in-situ technology to provide monitoring during and after assembly, for lifetime reliability monitoring. These products are delivered as Verilog-instantiated IP cores for use in FPGAs, CPUs and other microelectronics packages.

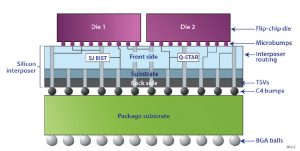

Diagram representation of TSV BIST

Diagram representation of TSV BIST’s IP, which incorporates SJ BIST and Q-Star PG-Mon

Sentinel Interconnect interfaces directly to the host IC or system through JTAG, I2C, SPI or other bus. SJ BIST and TSV BIST can be configured not only to detect faults and degradation, but to perform first-pass processing of the acquired data.

Sentinel IT

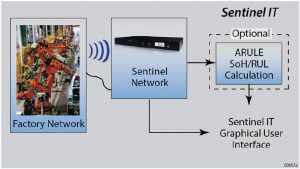

sentinel-suite_sentinel-itSentinel IT provides solutions for improving IT network reliability, providing comprehensive network management (NHM). NHM provides a comprehensive set of features, including UPS health monitoring and switch troubleshooting, allowing an easier and more efficient management of the network, including advanced “Industrial Internet” and IoT applications.
